Name: Smekitlly JF018 Mini 3-in-1 Wireless Ceiling Fan Remote Kit
Brand: Smekitlly
SKU: JF018

Smekitlly JF018 mini ceiling fan remote kit: the white handheld remote with MED, LOW, HI, LIGHT ON/OFF, STOP and 1H, 2H, 4H, 8H timer buttons, the compact black receiver, and the wire connecting nuts. — The handheld remote, the compact receiver, and the wire connecting nuts supplied in the box.

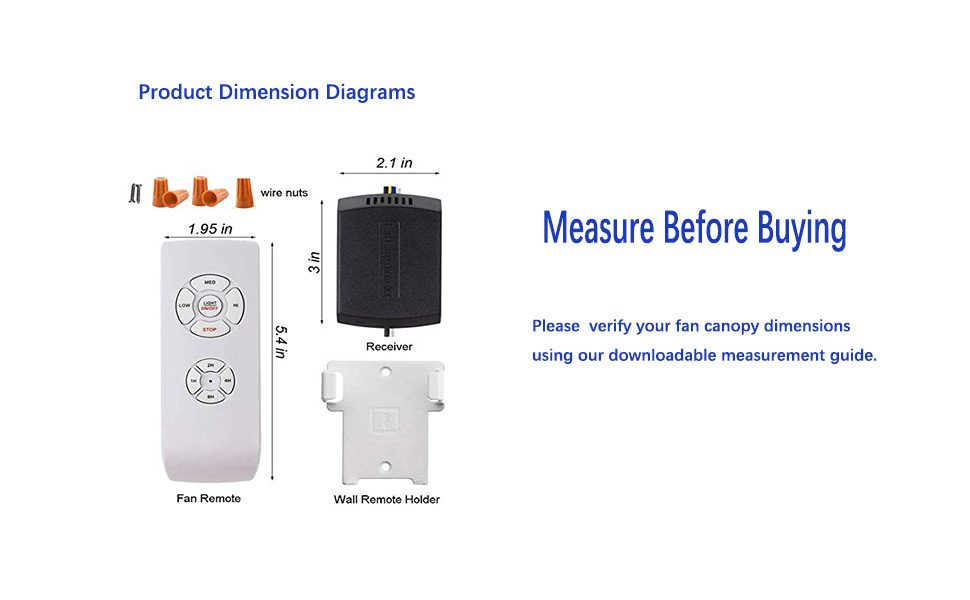

Dimension drawing: fan remote 1.95 inches wide by 5.4 inches tall; receiver 2.1 inches by 3 inches; wall remote holder and wire nuts shown alongside. — Measure your canopy before ordering — the receiver is 2.1 × 3 in.

Three pack sizes, one kit. Supplied as a 1-pack, a 2-pack or a 3-pack. The remote, the receiver and the fittings are identical in each.

Why this kit exists. A standard in-canopy receiver is too large for some fans. This one measures 2.1 × 3 in — sized to fit mini and compact fan canopies, where a full-size receiver will not go.

Overview

The JF018 kit pairs a slim handheld remote with a compact in-canopy receiver. It is the kit to choose when space inside the canopy is the problem — so the receiver is small, and measuring your canopy first matters.

The kit arrives pre-programmed. There is no DIP code to set and no pairing sequence to run: wire the receiver in at the ceiling, restore power, and the remote works.

Key points

Small receiver — 2.1 × 3 in, for mini and compact fan canopies.
3 fan speeds — Hi, Med and Low, plus OFF, with a dedicated STOP button.
Instant light switch — the light is switched on and off. This kit does not dim; the FAN-TT53 kit does, if that is what you need.
Four programmable timers — 1, 2, 4 and 8 hours.
Silent mode. Press and hold the 2H button for 2–3 seconds to switch the beep on or off; the default is on.
Pre-programmed — no coding, no pairing sequence, no app.
Wall holder included.

What is in the box

Handheld remote × 1
Compact in-canopy receiver × 1
Wall holder × 1
Wire connecting nuts
Printed installation instructions × 1

The 2-pack and 3-pack contain two or three complete sets.

What it works with — and what it does not

Stated plainly, because a kit that turns up and does not fit costs everyone more than a kit that was not ordered.

Works with

Mini and compact ceiling fans — the receiver is smaller than a standard one, so it fits where a full-size receiver will not.
Ceiling fans with a pull chain that you want to convert to remote control.
Major fan brands. Used with Hampton Bay, Harbor Breeze, Westinghouse and Honeywell fans, among others.
Lights with a simple on/off — the remote switches the light circuit.

Does not work with

Dimming. The light control is on and off only. If your fan has a dimmable LED or halogen lamp and you want to dim it, take the FAN-TT53 kit instead.
Canopies with no room for the receiver. Measure yours first — 2.1 × 3 in has to sit inside the canopy without being pinched by the cover.
Fans with unusual motor or light wiring. Receivers are not universal — send us a photo of your setup and we will confirm before you order.

Third-party brand names above are the property of their respective owners and are referenced only to describe compatibility.

Specifications

Taken from our own product data — not from a third-party listing.

Model / SKU	JF018
Product type	Ceiling fan remote control kit — 3-in-1
Pack options	1-pack, 2-pack or 3-pack — identical components
Fan speeds	3 — Hi / Med / Low, plus OFF and a STOP button
Light control	On / off switch — this kit does not dim
Timers	1H / 2H / 4H / 8H
Beep	Silent mode available; default on
Pairing	Pre-programmed at the factory — no coding or pairing sequence
Receiver dimensions	2.1 × 3 in (53 × 76 mm) — fits mini canopies
Remote dimensions	1.95 × 5.4 in (50 × 137 mm)
Receiver mounting	In-canopy
Wall holder	Included

Installation

The kit is wired at the fan, not at the wall switch, and arrives already paired. If you are not confident working at a ceiling outlet, have a licensed electrician fit it.

1

Isolate the circuit

Switch off the breaker and confirm the fan is dead at the wall switch before touching any wiring.

2

Fit the receiver in the canopy

Connect the receiver between the house wiring and the fan wiring, matching by colour and using the printed guide supplied.

3

Power on and test

Restore power and test each speed, the light and the timers. No pairing step is needed.

Measure first. The receiver needs to sit inside your fan's canopy without being pinched by the cover. Compare the 2.1 × 3 in receiver against the space you have before you order — that is the whole point of this kit.

Safety. Ceiling fans and their wiring operate at mains voltage. Isolate the circuit at the breaker before opening the canopy. Do not install a receiver that shows signs of heat damage, scorching or a burnt smell. Use the wire connecting nuts supplied with the kit.

Where to buy

Smekitlly products are sold and shipped through Amazon. Choose your pack size below — each links to its own listing.

1-pack on Amazon 2-pack on Amazon 3-pack on Amazon

Amazon ASINs: 1-pack B0927H7TS3 · 2-pack B096KRNVWG · 3-pack B0927HQKX2

Ask about fitment Installation help

After-sales

FCC ID	2A4U8-JF018
Return window	30 days from delivery
Warranty	1-year replacement warranty against manufacturing defects, provided by Smekitlly (Shenzhen Qiyun Intelligent Technology Co., Ltd.). Exclusions are set out in the Terms of Service.
Orders	Sold and fulfilled through Amazon
