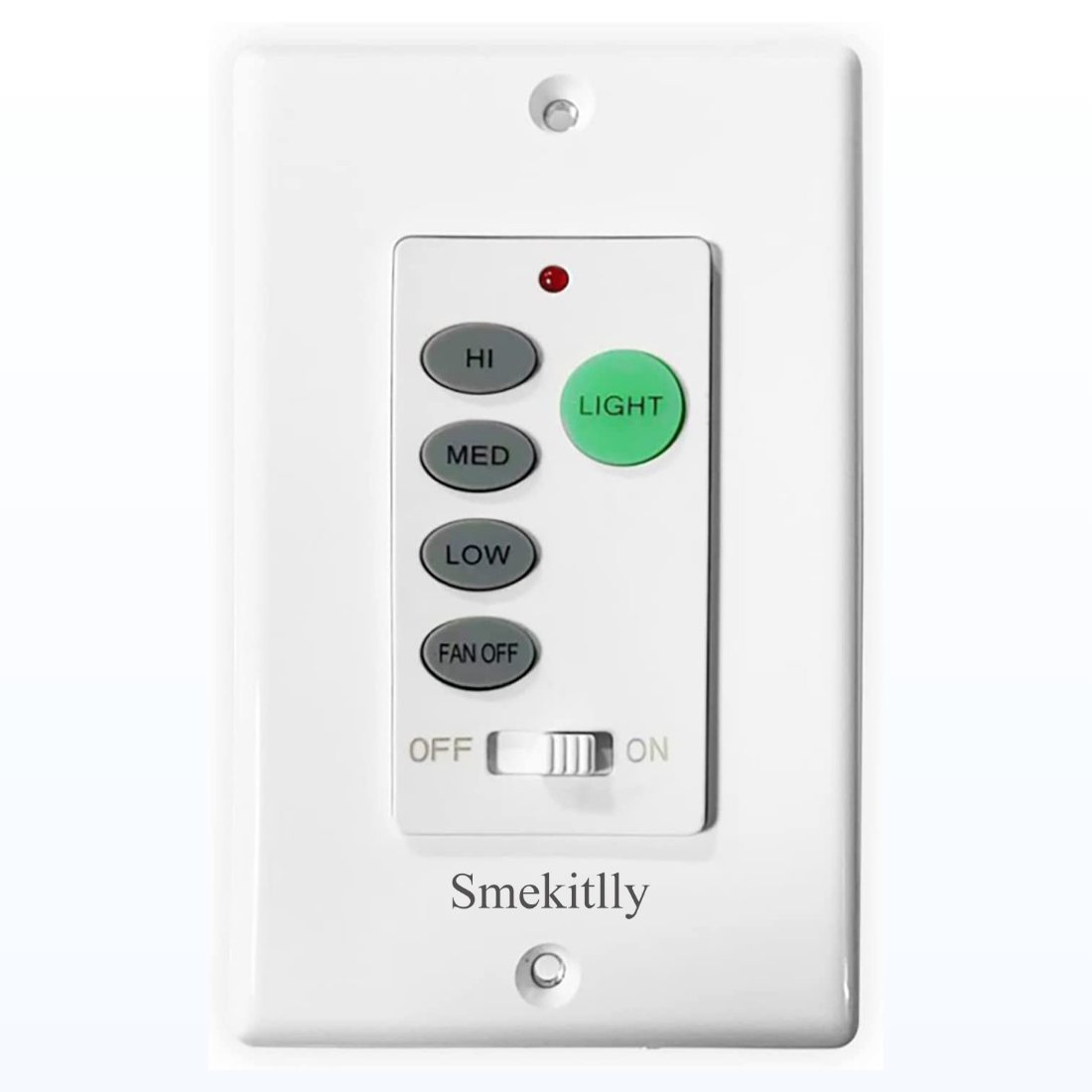

Model BY061 · wall control only
A ceiling fan wall control that needs no neutral wire
BY061 replaces the wall switch beside your fan and controls it from there three fan speeds, a light button with dimming, and a main switch that cuts both. It wires in line with the fan supply, so it works in older homes whose switch box has no neutral wire.
$29.90 as listed on Amazon in September 2026 — the listing shows the current price
This is a wall control, not a handheld remote
The two are often confused, and the difference decides whether the part will work in your home at all.
A wall control is wired in
- It replaces the wall switch, mounted on the wall at the switch box.
- It is connected in line with the fan supply — three wires, done at the wall, not at the ceiling.
- It takes its power from the mains, so there is no battery to change.
- It needs no neutral wire at the switch box, which is why it suits older wiring.
What it is not
- It is not a wireless handheld remote. Nothing here is battery powered or carried around the room.
- It does not include a receiver. A receiver is only needed for fans that are controlled from a handheld remote at the ceiling — if that is what you have, see BY061 + MINI R28.
- It does not control a fan's reverse function.
- It is not for DC motor fans.
Wiring and pairing, in short
- Wire it in series. The control sits in the live line between the supply and the fan. Green is ground; black is the feed in and the switched feed out to the fan.
- Never connect the neutral wire to the control. The neutral runs straight to the fan. Wiring it into the control can damage the unit and is a fire risk.

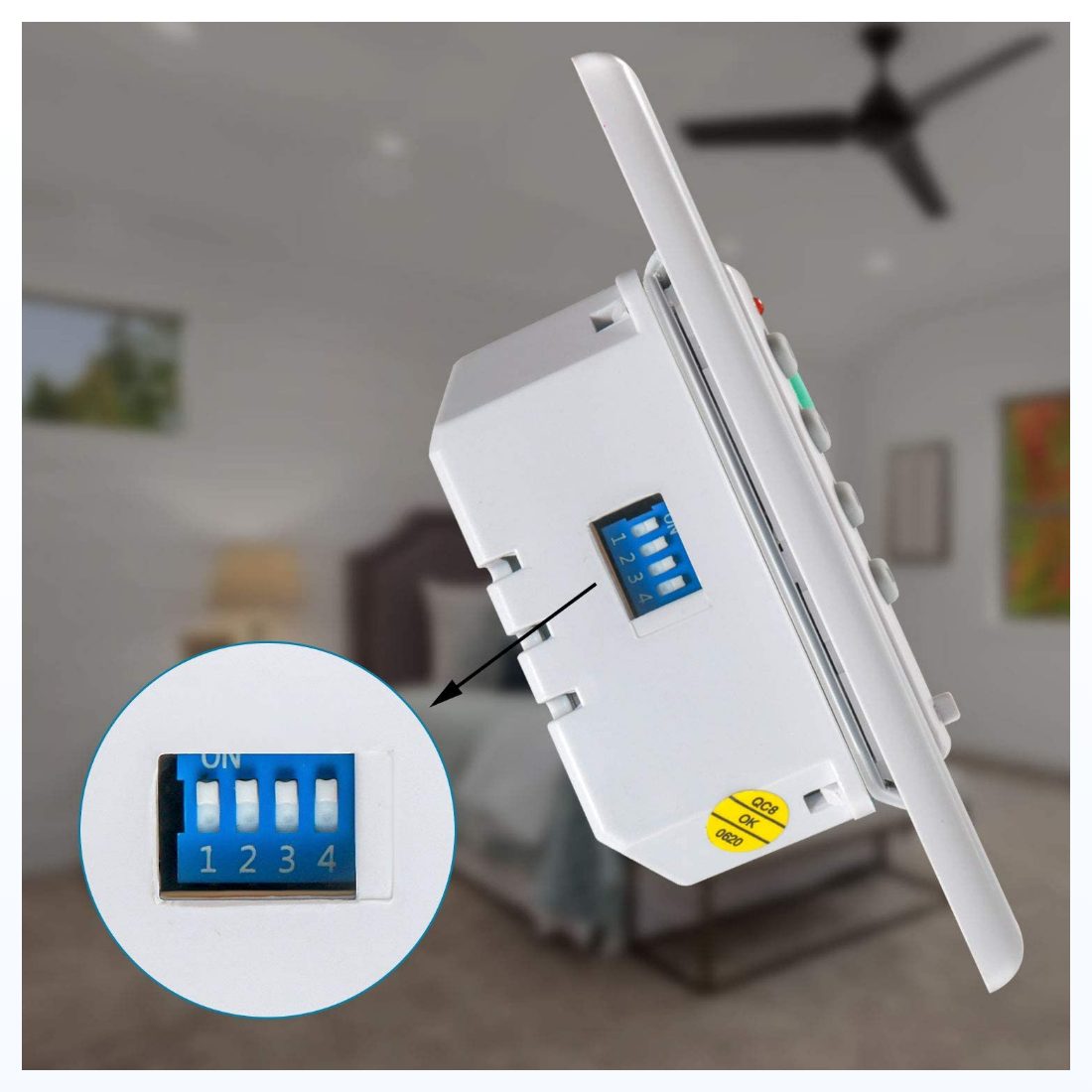

- Four DIP switches set the code. If you are replacing an old control, set the new one to the same code the old one used.
- Single-pole circuits only. It is not for a 3-way or 4-way switch circuit.
What it works with, and what it does not
Works with
- 110–130 V, 60 Hz, 3-speed AC ceiling fans that have a four-position fan control.
- Switch boxes with no neutral wire — common in older homes.
- Dimmable LED and CFL lamps, and incandescent or halogen on the light circuit.
- Fans currently controlled by a wall switch that you want to add dimming and speed control to.
Does not work with
- DC motor ceiling fans. They use a different controller.
- Non-dimmable LED and CFL lamps. They switch on and off, but will not dim.
- Reverse / direction control. Use the switch on the fan housing as before.
- Fans without a compatible four-position controller. Check against the model list below before ordering.
Listed as a replacement for
Model numbers below describe the older controls this wall control is intended to replace. They belong to their respective owners; Smekitlly is not affiliated with those manufacturers.
- UC9050T
- UC9050U
- CHQ9051T
Fitment still depends on your fan's motor and the wiring at the switch box. Send us a photo and we will confirm before you buy.
What is in the box
- Wall control × 1
- Wall plate × 1
- Mounting screws
- A receiver is not included. This box is the wall control only.
BY061 at a glance
Taken from our own product data, not from a third-party listing.
- Model
- BY061
- Type
- Ceiling fan wall control, wired in line
- Fan control
- HI / MED / LOW, plus fan off
- Light control
- Light button with dimming — dimmable LED/CFL and incandescent lamps
- Main switch
- One switch cuts fan and light
- Supply voltage
- 110–130 V AC, 60 Hz
- Maximum fan motor
- 1.0 A
- Maximum light load
- 240 W
- Radio frequency
- 303.9 MHz
- Buttons
- Six controls — three speeds, fan off, light button, main switch
- Housing
- ABS, 4.8 oz
- Neutral wire
- Not required at the switch box
- Reverse function
- Not supported
Support and terms
- Sold and shipped
- Through Amazon — covered by Amazon's returns process
- Return window
- 30 days from delivery
- Warranty
- 1-year replacement against manufacturing defects, provided by Smekitlly
- Compliance
- Certification details are on the Amazon listing
If you are unsure whether your fan is compatible, send us a photo of the existing wall switch and the wiring behind it, plus your fan's make and model. We will tell you honestly whether this control will work — and if it will not, we will say so.
This listing is the wall control on its own. It is a separate product from BY061 + MINI R28, which adds a mini receiver for fans controlled from a handheld remote.
What buyers report most
Buyers report a clean signal — no buzzing or static while the fan runs.
Several buyers describe the fan responding as soon as the control was in and the power was back on.
A recurring pattern: one control for one room, then a return trip for the next fan.
Summarised in our own words from recurring buyer feedback on our Amazon listings. We do not republish Amazon reviews, star ratings or reviewer names.
